GMP24-TEC2430 24mm Geared Motor Electric 12v Brushless Motor

Product Description

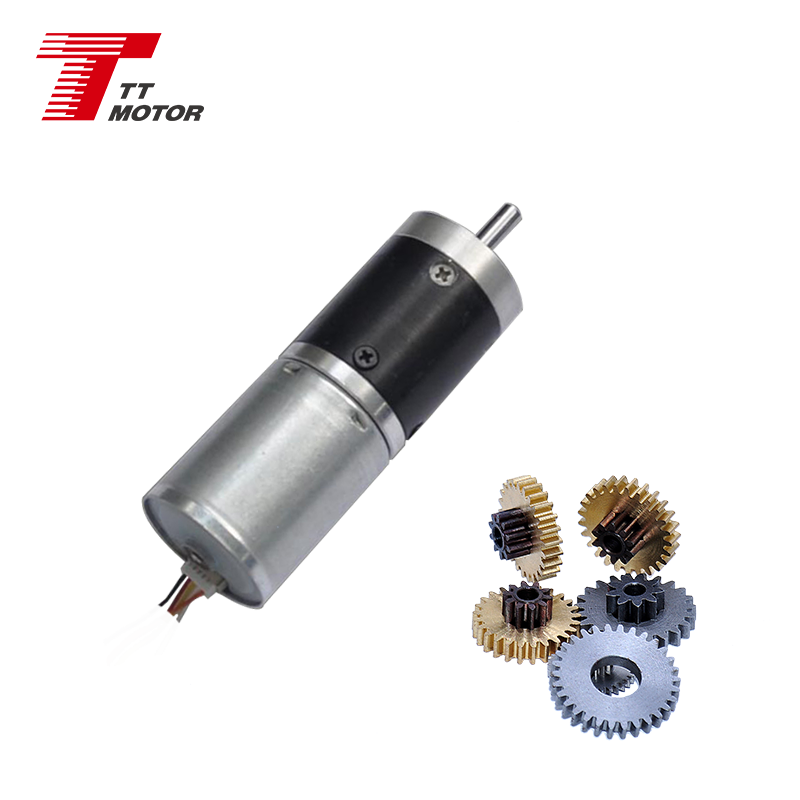

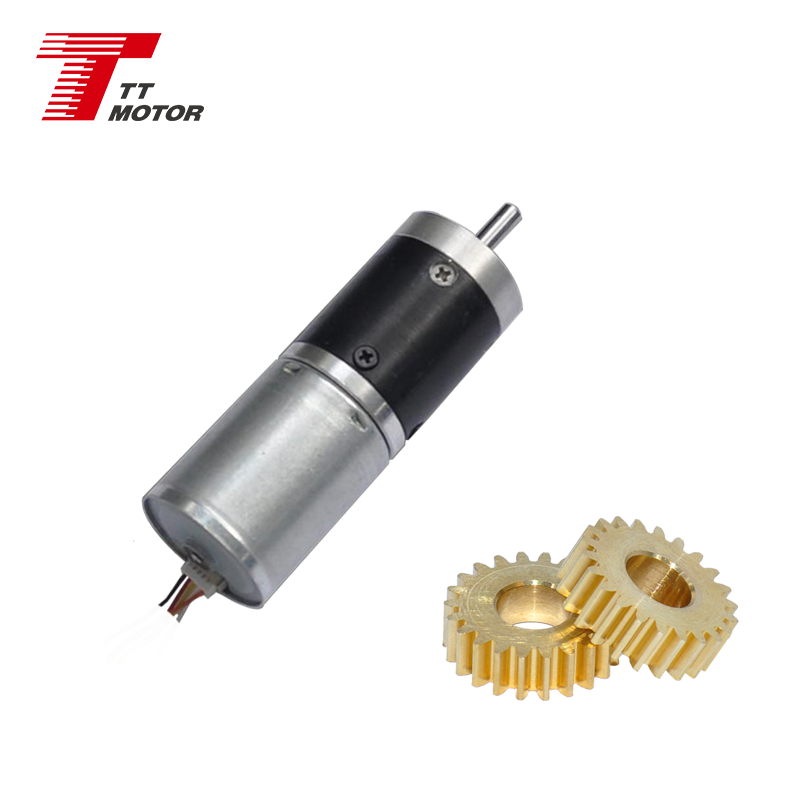

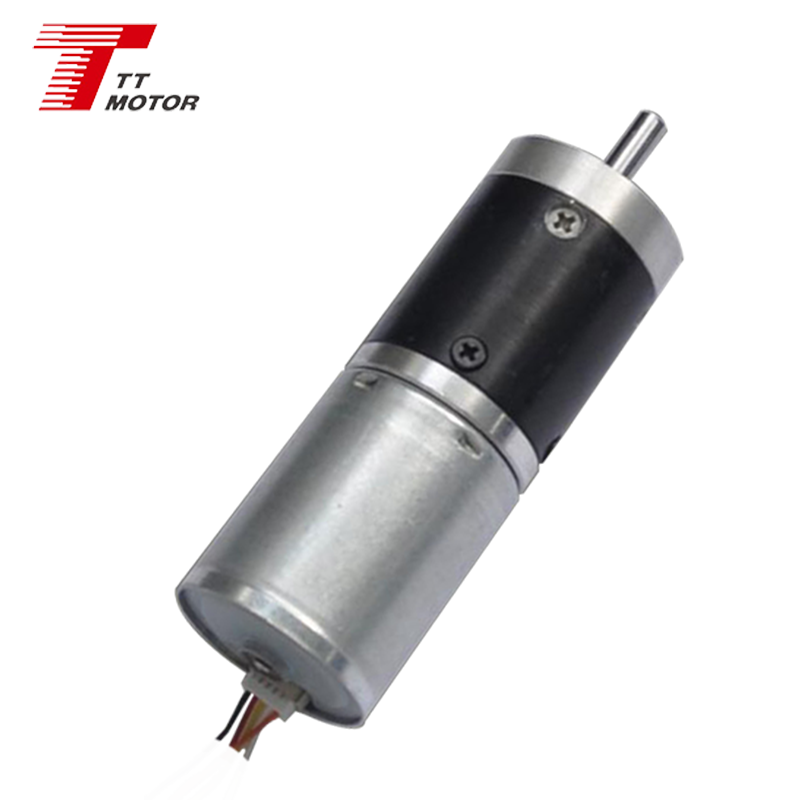

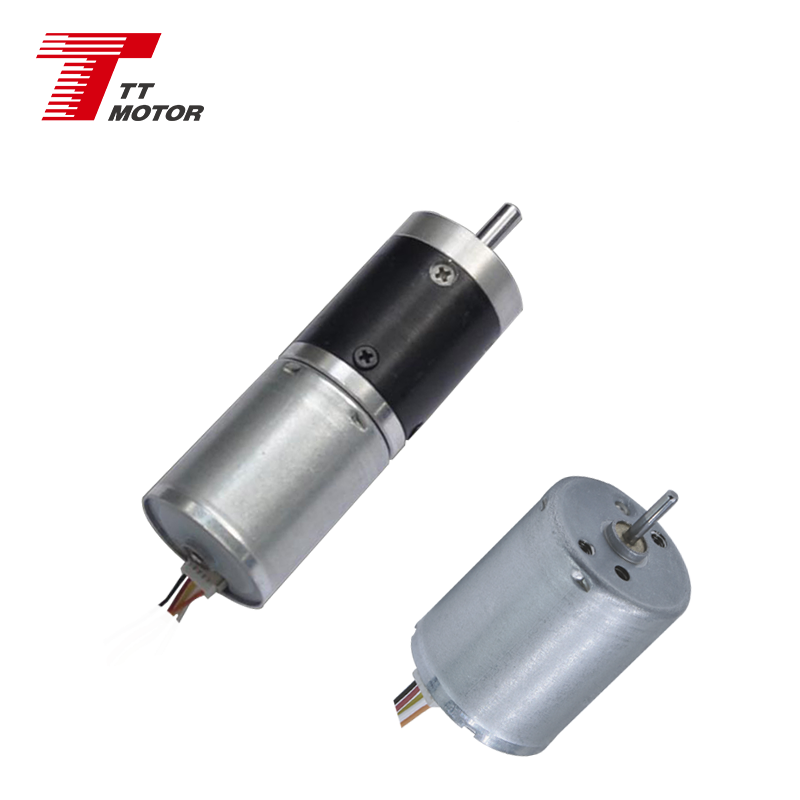

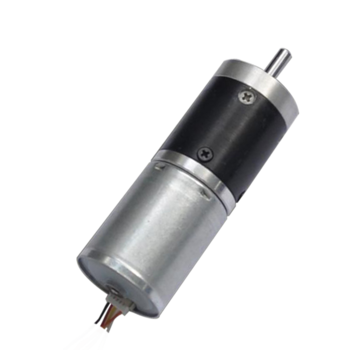

GMP24-TEC2430 24mm geared motor electric 12v brushless motor
Product Description
  • 24mm planetary gearbox plus 24mm brushless motor
  • Small size dc gear motor with low speed and big torque
  • 24mm gear motor provide 0.5Nm torque and more reliable
  • Suitable to small diameter, low noise and big torque application
  • Reduction ratio: 4, 14, 19, 27, 51, 71, 100, 139, 189, 264, 369, 516, 720
Motor model no. Rated voltage No-load speed No-load current Rated speed Rated torque Rated current Output power Stall torque Stall current
VDC r/min mA r/min g.cm mA W g.cm A
TEC2430-1255 12 5500 90 4500 50 330 2.3 270 1.4
TEC2430-2455 24 5500 50 4500 50 180 2.3 270 0.75
Reduction ratio 19 27 51 71 100 189 264 369 516
Length mm 58.8 58.8 63.8 63.8 63.8 68.8 68.8 68.8 68.8
No-load speed rpm 280 195 105 75 55 29 21 15 11
Rated speed rpm 250 180 95 68 48 25 18 13 9
Rated torque kg.cm 0.6 1.0 1.4 2.0 2.8 5.0 5.0 5.0 5.0

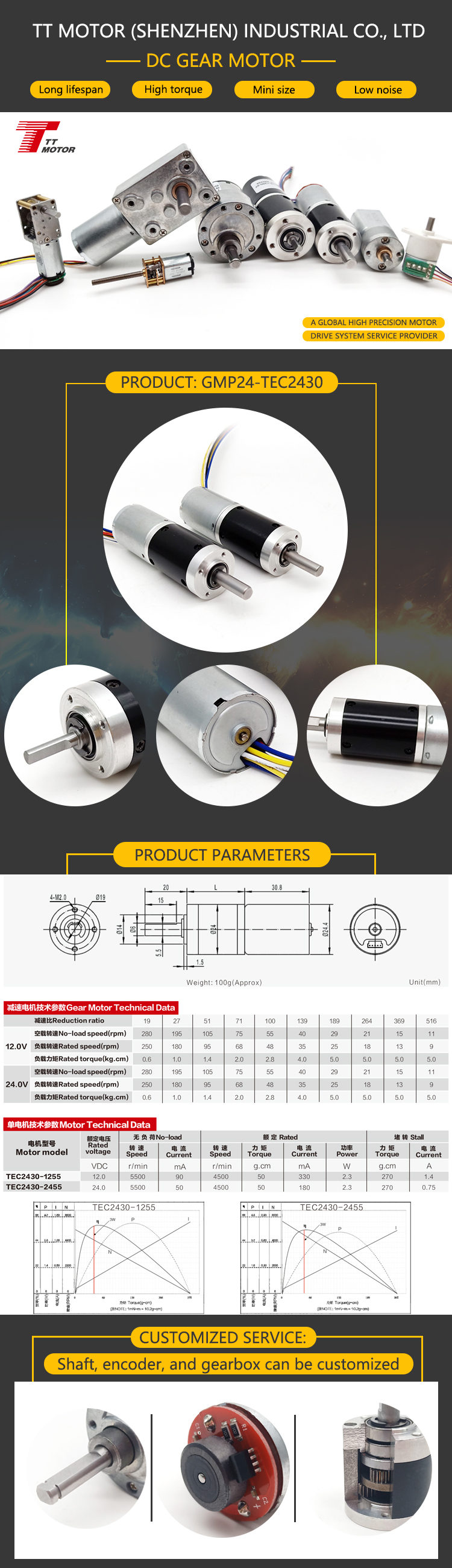

Motor specification diagram
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Product application details
Others application
Business Machines Vending Machines Printers ATM Copiers and Scanners
Camera and Optical Video Cameras Projectors -
Lawn and Garden Lawn Mowers Snow Blowers Trimmers Leaf Blowers
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
Our Company
We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging a hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in sales overseas by seeking global partners.
Our manufacturing facilities
Our Customers
NIKE, FLEXTRONICS, STANLEY, etc.
Customer partnerships
Packing & Delivery
Standard packing
Shipping time:
  • DHL: 3-5 working days
  • UPS: 5-7 working days
  • TNT: 5-7 working days
  • FedEx: 7-9 working days
  • EMS: 12-15 working days
  • China Post: Depends on destination country
  • Sea Freight: Depends on destination country
Logistics and shipping information
Our Customer Feedback
Excellent quality, better price, good service, and on time delivery.
Frequently Asked Questions
Q: How to order?
A: Send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Q: How about Sample order?
A: Sample is available for you. Please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place a formal order.
Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight are available. Other shipping methods are also available; please let us know if you need shipment via alternative methods.
Q: How long is the producing and shipping?
A: Delivery time depends on the quantity you order. Usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order details and package contents. We apologize for any inconvenience caused.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, and other payment methods. Please contact us prior to sending payment. A 30-50% deposit option is also available, with the remaining balance due before shipping.
