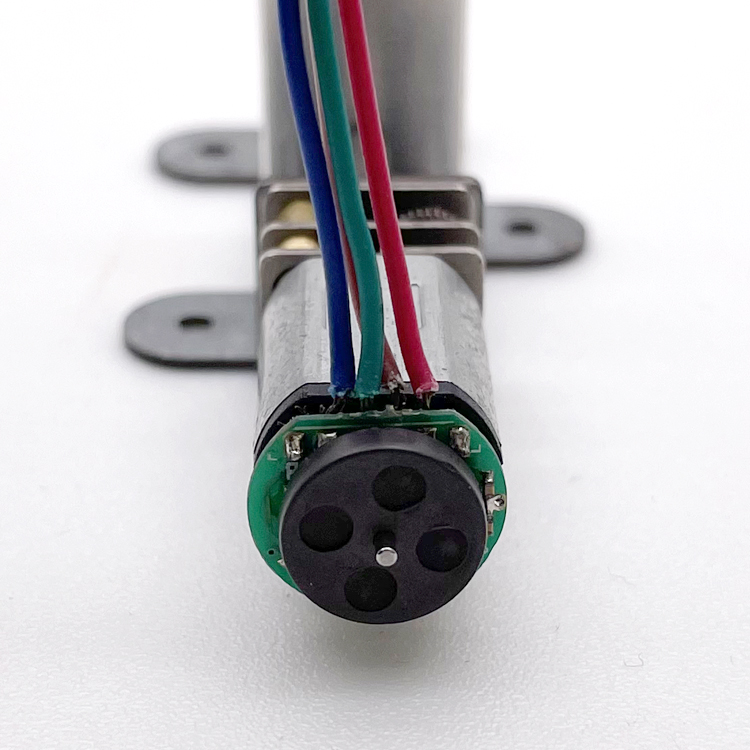

TT Motor 12v Electric Motors GM12-N20VA 1000 Ratio Spur Gear Motor for Sale

1 / 5

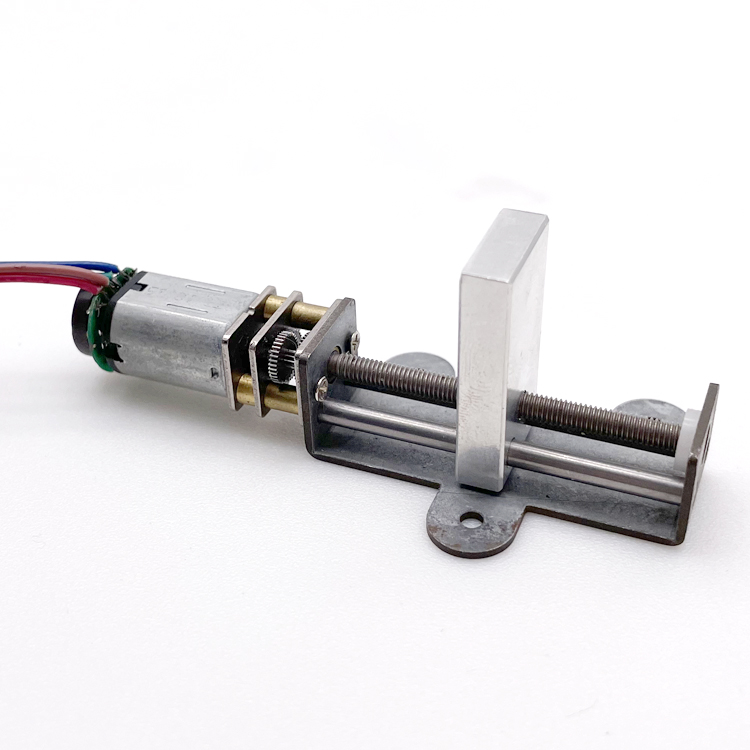

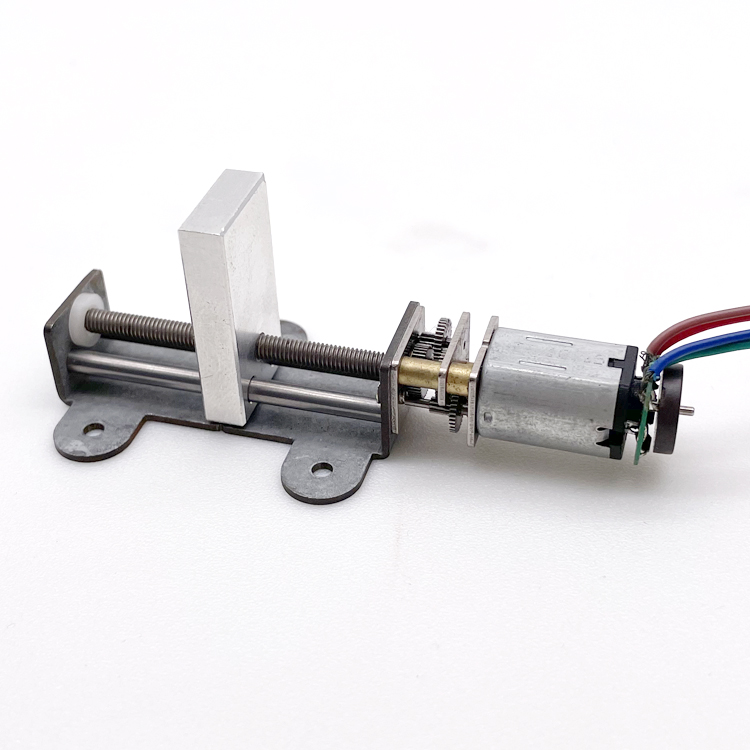

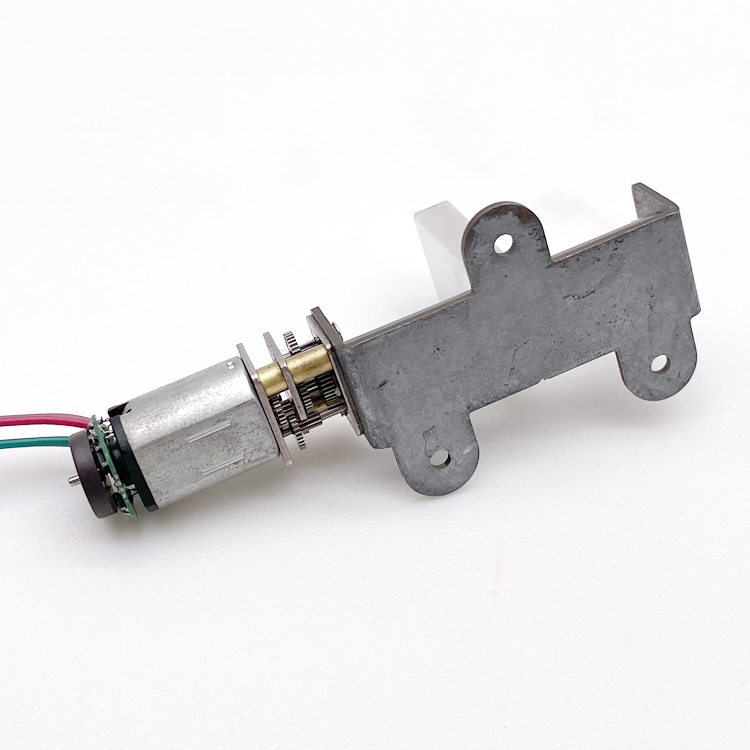

TT Motor 12v Electric Motors GM12-N20VA 1000 Ratio Spur Gear Motor for Sale

Send Inquiry

Product Description

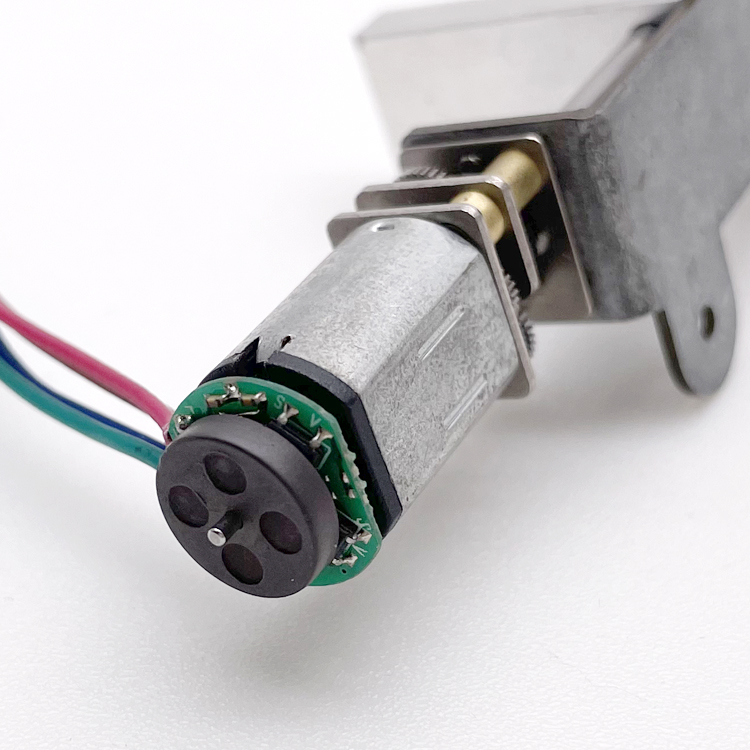

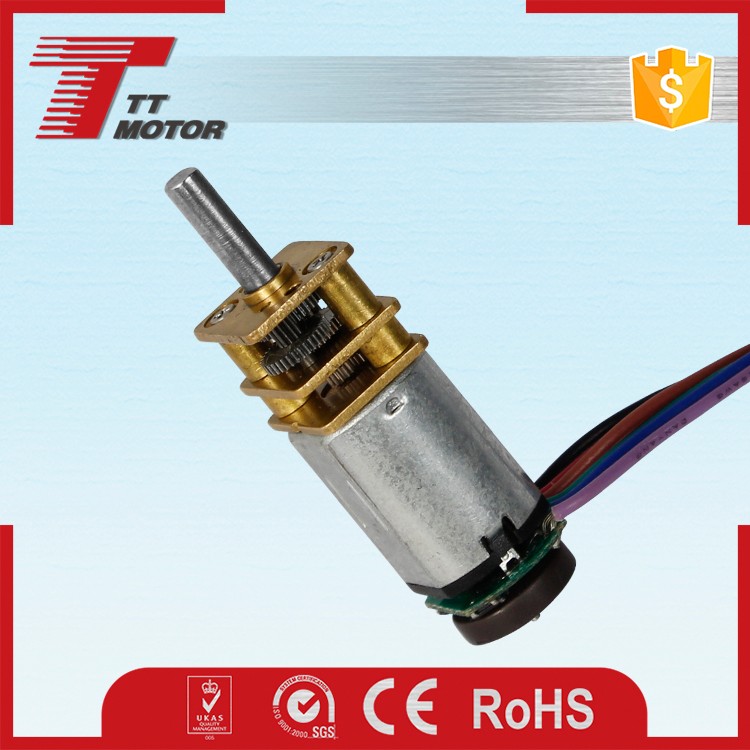

3v dc mini gear motor 12mm electric motor with encoder

Main Features

12*10 mm gearbox plus N20 & N30 permanent magnet dc motor
Small size dc gear motor with low speed and big torque
12mm gear motor provide 0.1Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motors can match encoder, 3ppr
Reduction ratio: 3, 5, 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000

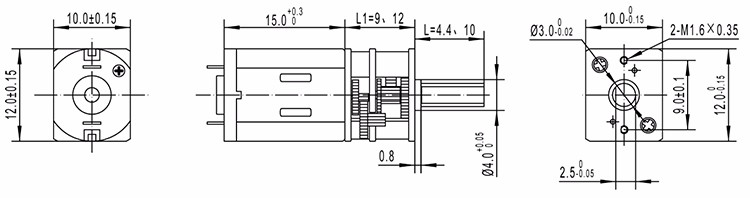

12mm electric motor with encoder specification

Motor Specifications (GM12-N20VA)

Model	Voltage & Speed	Torque Details	Current Details
TFF-N20VA-13110	Rated voltage: 2.4V DC Rated speed: 12000r/min	Output power: 0.31W Rated torque: 2.5g.cm	No-load speed: 14800r/min No-load current: 60mA
	Stall torque: 13g/cm	Rated current: 200mA	Stall current: 1.20A

TFF-N20VA-09220	Rated voltage: 5V DC Rated speed: 12200r/min	Output power: 0.31W Rated torque: 2.5g.cm	No-load speed: 15000r/min No-load current: 30mA
	Stall torque: 13g/cm	Rated current: 120mA	Stall current: 0.6A

TFF-N20VA-05430	Rated voltage: 12V DC Rated speed: 12500r/min	Output power: 0.35W Rated torque: 3.0g.cm	No-load speed: 16000r/min No-load current: 15mA
TFF-N20VA-05430	Stall torque: 13g/cm	Rated current: 60mA	Stall current: 0.25A

GM12-N20VA-13110-EN Gearbox Data

Parameter	10	30	50	100	150	210	250	298	380
Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1450	470	285	145	96	69	58	50	38
Rated speed rpm	1200	400	240	120	80	57	48	40	31
Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max. tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-09220-EN Gearbox Data

Parameter	10	30	50	100	150	210	250	298	380
Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1480	490	290	150	98	70	60	50	38
Rated speed rpm	1220	405	245	122	81	57	48	40	31
Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max. tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-05430-EN Gearbox Data

Parameter	10	30	50	100	150	210	250	298	380
Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1550	530	310	160	110	78	60	55	43
Rated speed rpm	1100	400	250	125	83	60	50	42	33
Rated torque kg.cm	0.02	0.05	0.08	0.18	0.27	0.37	0.45	0.5	0.5
Max. tolerance torque kg.cm	0.1	0.2	0.4	0.8	1.1	1.5	1.6	1.9	2.5

Product Applications

Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.

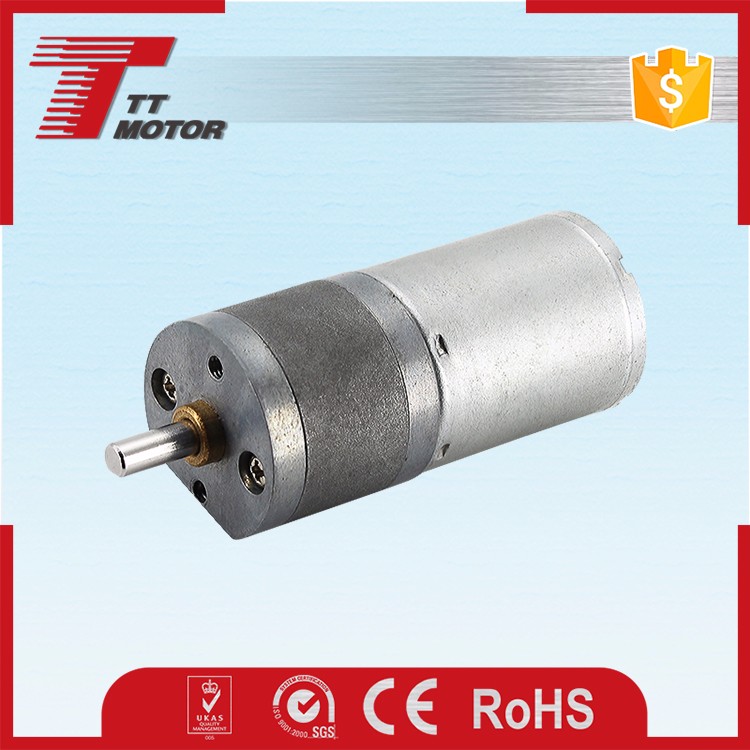

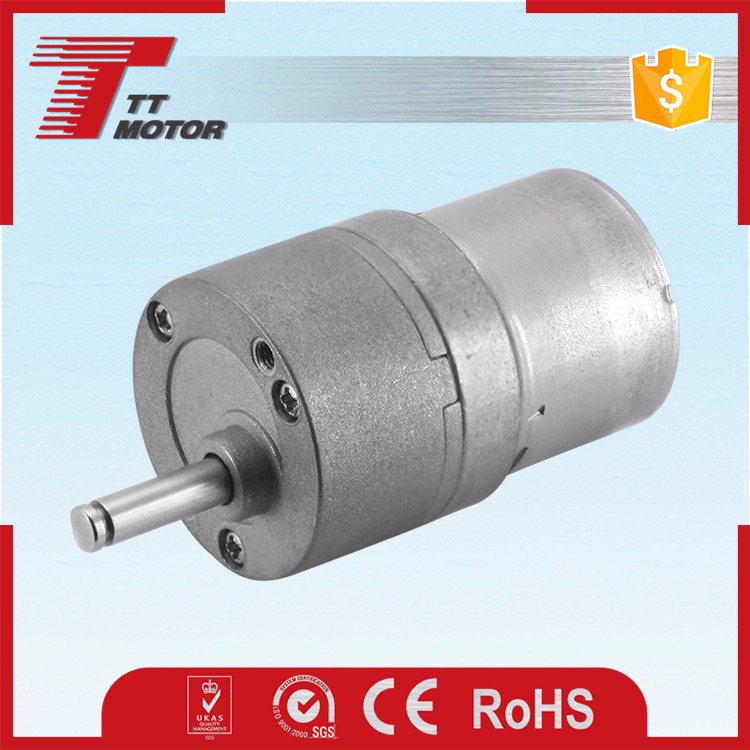

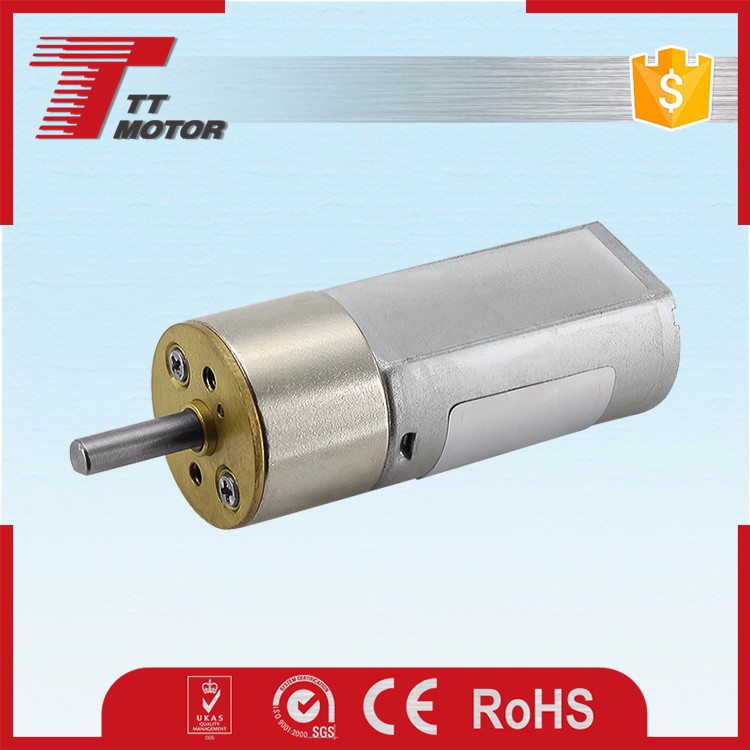

Related Products
