TT Motor China Supplier 5v Geared Dc Motor With Encoder Mini Stepper Motor

1 / 5

TT Motor China Supplier 5v Geared Dc Motor With Encoder Mini Stepper Motor

Send Inquiry

Product Description

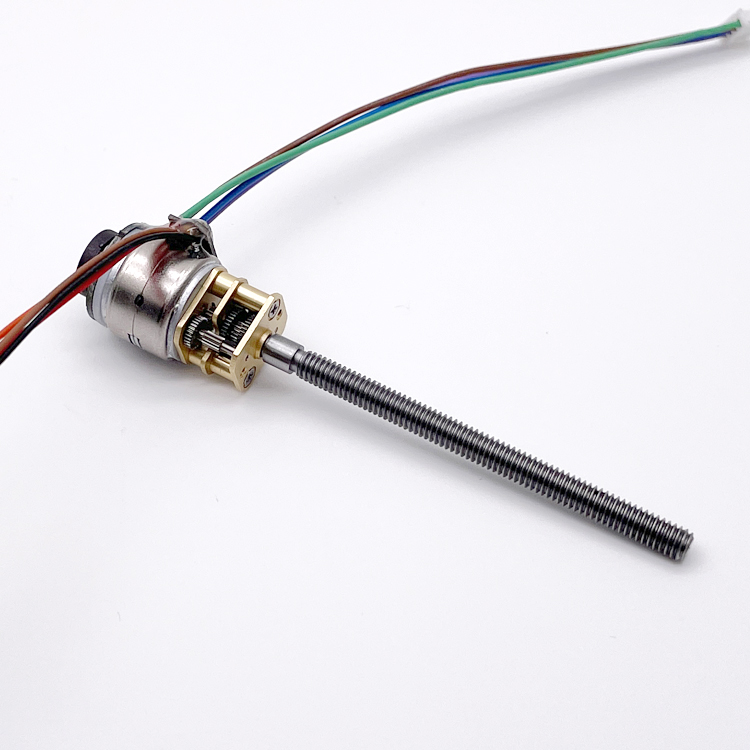

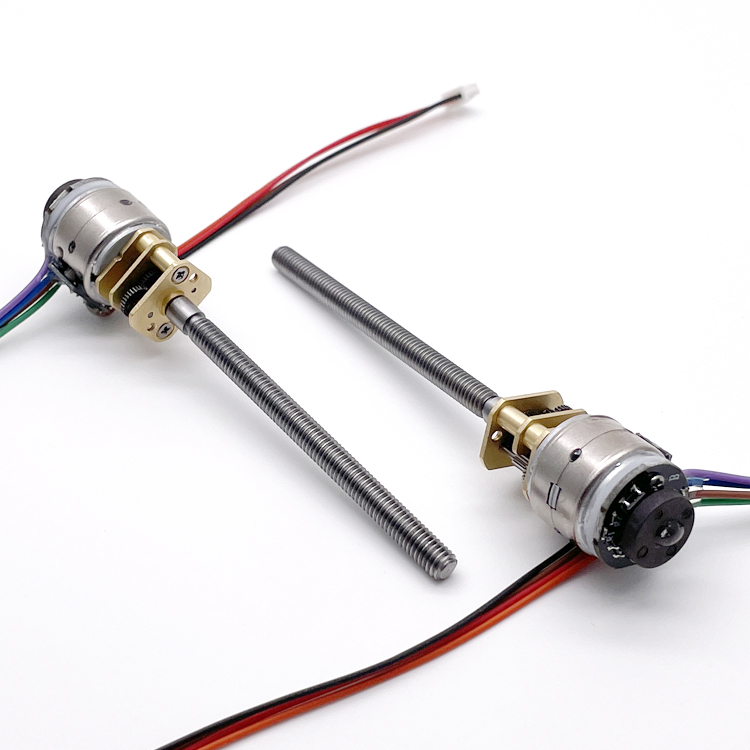

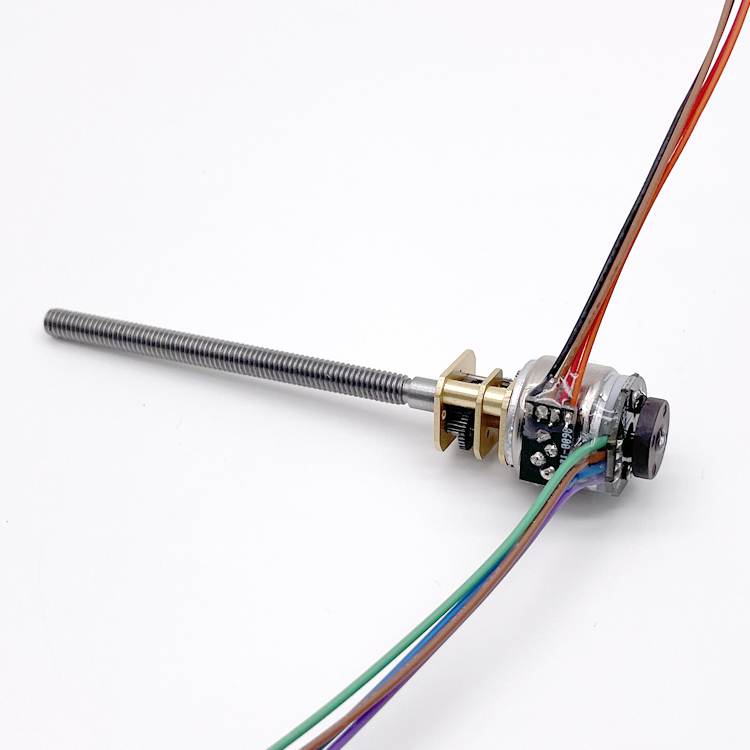

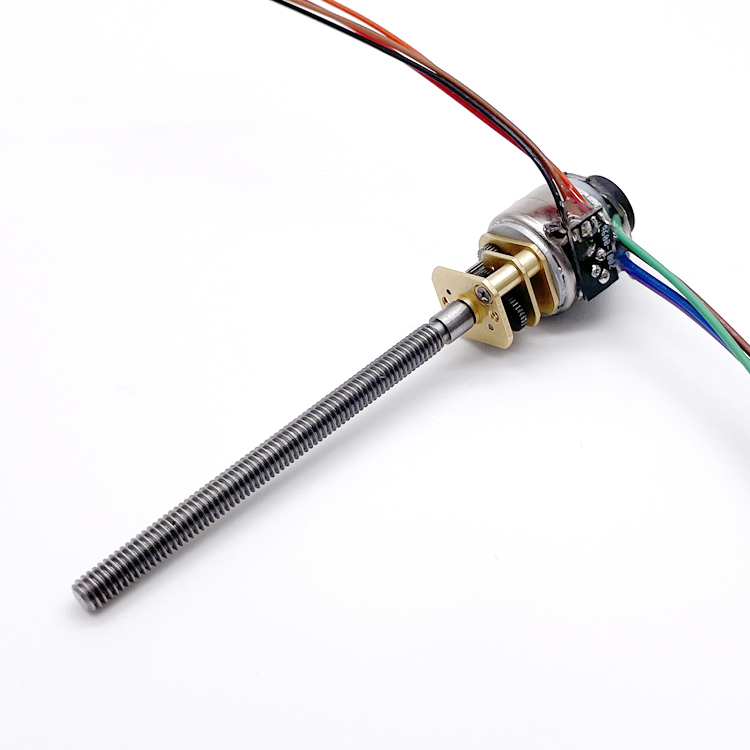

5V Geared DC Motor with Encoder Mini Stepper Motor

Main Features

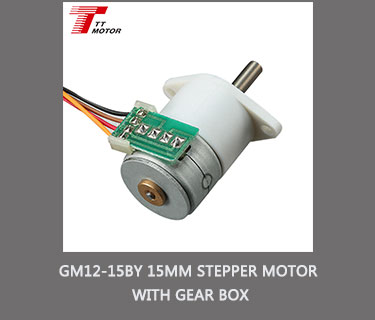

12*10mm gearbox plus 15mm stepping motor
Small size dc gear motor with low speed and big torque
12mm gear motor provide 0.05Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
Reduction ratio: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, 380

Technical Specifications

Model	Rated Voltage	Resistance	No. of Phase	Holding Torque	Step Angle	Current	Gear Ratio	Pull-in Rate
GM12-15BY-30	5VDC	10Ω	2	500g.cm	18°	500mA	1/30	800pps
GM12-15BY-50	5VDC	10Ω	2	700g.cm	18°	500mA	1/50	850pps
GM12-15BY-110	5VDC	10Ω	2	1050g.cm	18°	500mA	1/110	850pps

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Other Applications

Category	Applications
Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera and Optical	Video	Cameras	Projectors	-
Lawn and Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.

Company Profile

Specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.

Our Customers

NIKE, FLEXTRONICS, STANLEY, etc.

Packing & Delivery

Standard packing

Shipping Time

DHL

3-5 working days

UPS

5-7 working days

TNT

5-7 working days

FedEx

7-9 working days

EMS

12-15 working days

Sea / China Post

Depends on destination country

Customer Feedback

Excellent quality, better price, good service, and on time delivery.

Frequently Asked Questions

Q How to place an order?

Send us an inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

Q Are samples available?

Yes, samples are available. Please get in touch for detail requirements. Once a sample fee is charged, it will be fully refunded when you place a formal order.

Q Which shipping ways are supported?

DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight are all supported. Other delivery methods can also be arranged upon request.

Q How long are the production and delivery times?

Delivery and manufacturing lead times depend on the specific quantity ordered. Normally, the production process takes 15-25 working days.

Q What should I do if my package has missing products?

Please immediately contact the support team. We will verify the order contents and packaging records. We apologize for any inconvenience.

Q How do I confirm the payment details?

We accept payments via T/T and PayPal. Other payment options may be acceptable under agreement. A 30-50% deposit can be arranged, with the remaining balance settled before shipment.
