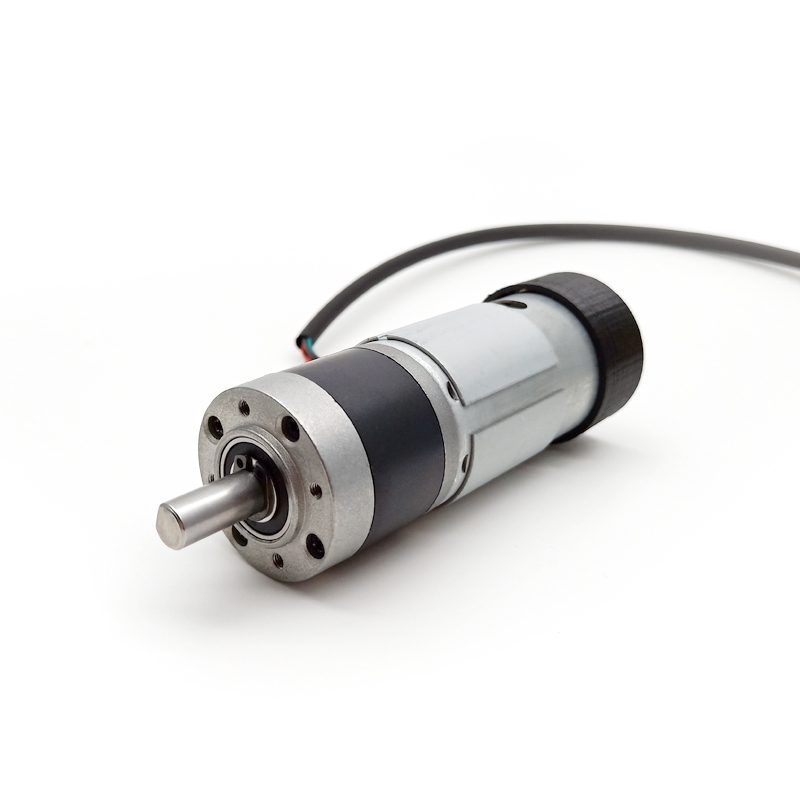

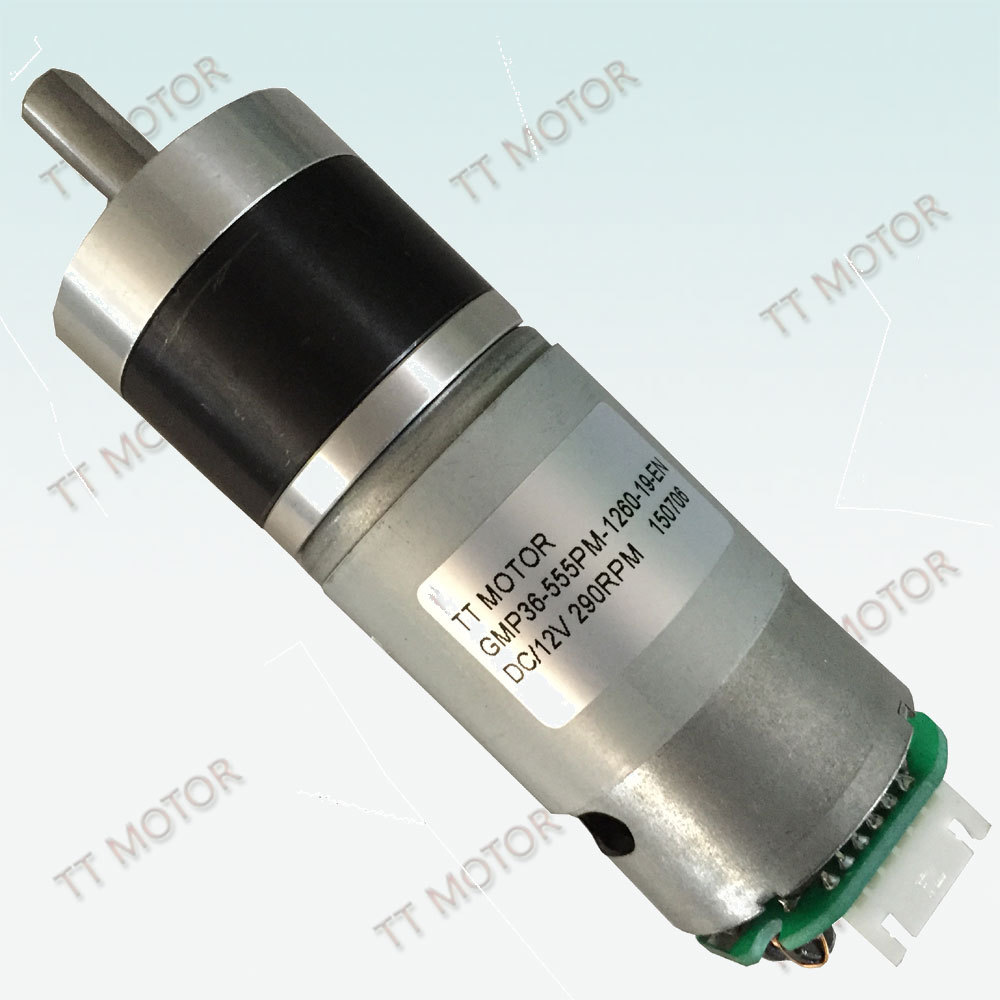

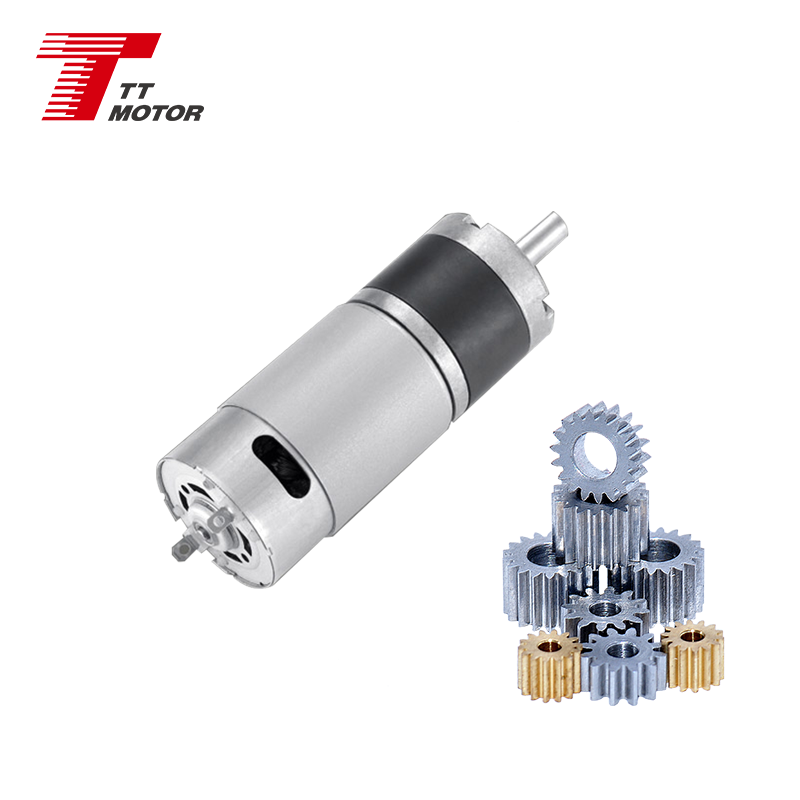

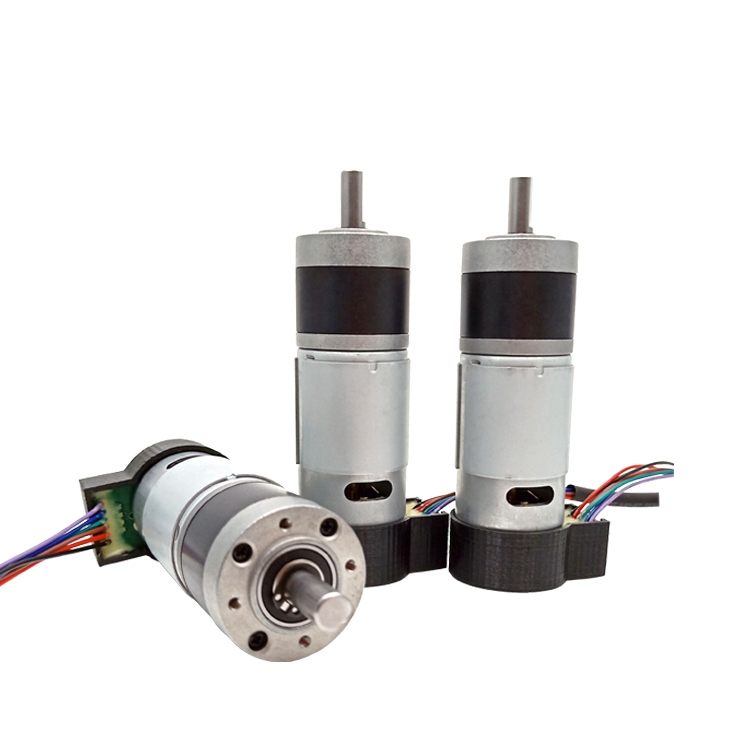

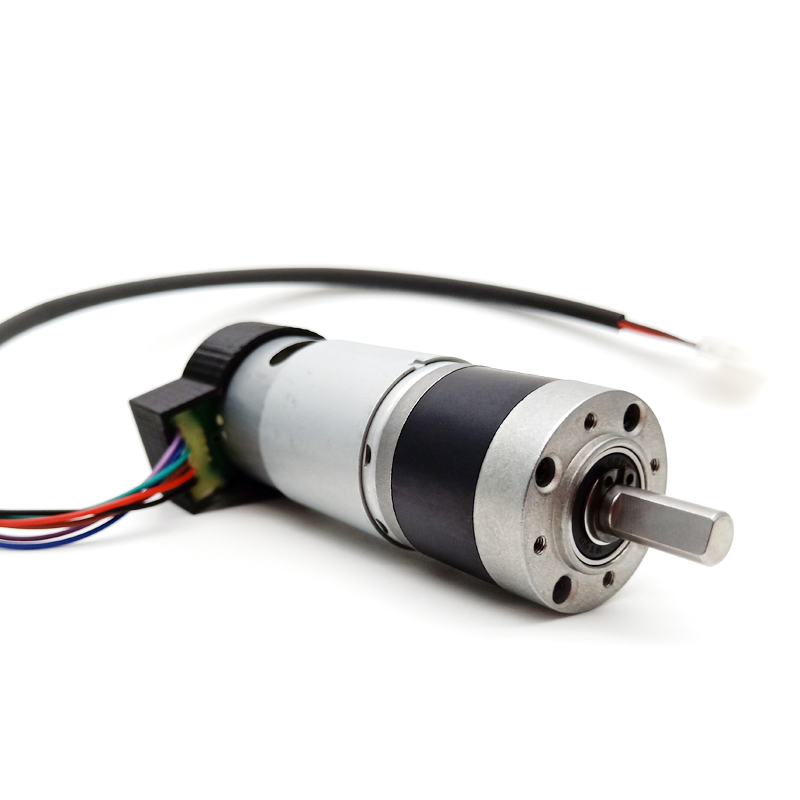

GMP36-555PM-EN Electric Motor Dc 24v Planetary Gear Motor Encoder

1 / 5

GMP36-555PM-EN Electric Motor Dc 24v Planetary Gear Motor Encoder

Send Inquiry

Product Description

GMP36-555PM-EN Electric Motor DC 24V Planetary Gear Motor Encoder

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, 12V DC gear motor, optical equipment, Automat cordless power tool, lighting, etc.

Model: Gear Motor GMP36-555PM Specification Details
TTRS-555PM-1233	Rated voltage: 12VDC	Rated speed: 2800r/min	Output power: 5.7W
	No-load speed: 3300r/min	Rated torque: 200g.cm	Stall torque: 1150g.cm
	No-load current: 200mA	Rated current: 1000mA	Stall current: 5.5A
TTRS-555PM-1260	Rated voltage: 12VDC	Rated speed: 5250r/min	Output power: 16W
	No-load speed: 6000r/min	Rated torque: 290g.cm	Stall torque: 2200g.cm
	No-load current: 300mA	Rated current: 2400mA	Stall current: 15.0A
TTRS-555PM-2440	Rated voltage: 24VDC	Rated speed: 3150r/min	Output power: 6.4W
	No-load speed: 2400r/min	Rated torque: 200g.cm	Stall torque: 1000g.cm
	No-load current: 150mA	Rated current: 700mA	Stall current: 2.7A

Main Features

36mm Planetary reducer plus 3530, 5 series of carbon brush motor and TEC3650 & 3640 brushless motor.
Small size DC gear motor with low speed and big torque.
36mm gear motor provides 3.0Nm torque and more reliable operation.
Suitable for small diameter, low noise, and big torque applications.
DC Gear motors can match encoder, 11pr.

Reduction Ratios Available:

4 14 19 51 71 100 139 189 264 369 516 720

GMP36-555PM-1233-xxx Performance

Reduction Ratio	4	19	51	100	139	189	264	369	516
Length (mm)	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load Speed (rpm)	750	160	60	32	23	17	12	9	6
Rated Speed (rpm)	700	150	55	28	20	15	11	8	5.5
Rated Torque (kg.cm)	0.64	2.7	6	12	15	21	26	30	30
Max. Momentary Tolerance Torque (kg.cm)	3.7	15	35	70	70	70	70	70	70

GMP36-555PM-1260-xxx Performance

Reduction Ratio	4	19	51	100	139	189	264	369	516
Length (mm)	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load Speed (rpm)	1400	300	110	55	42	32	23	16	11.5
Rated Speed (rpm)	1300	275	100	50	38	28	20	15	10.5
Rated Torque (kg.cm)	0.9	3.8	9	18	22	30	30	30	30
Max. Momentary Tolerance Torque (kg.cm)	5	20	60	60	60	70	70	70	70

GMP36-555PM-2440-xxx Performance

Reduction Ratio	4	19	51	100	139	189	264	369	516
Length (mm)	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load Speed (rpm)	980	200	75	38	28	21	15	10	7.5
Rated Speed (rpm)	750	155	60	30	21	16	13	9.5	7
Rated Torque (kg.cm)	0.64	2.7	6	12	15	21	26	30	30
Max. Momentary Tolerance Torque (kg.cm)	3.2	13	25	50	60	70	70	70	70

GMP36-555PM Planetary Gear Motor Dimensional Drawing

Detailed Applications

Our planetary gear motors are widely applicable in: Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, and other automated systems.

Other Industry Applications
Business Machines	Vending Machines, Printers, ATM, Copiers and Scanners
Camera & Optical	Video, Cameras, Projectors
Lawn & Garden	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.
